Light Weight Wall Mounted Energy Storage System 52V 100ah with Max. Charge/Discharge Current a 100
Home Use Low Pressure 51.2V 100Ah Energy Storage System Product Description
Product Parameters

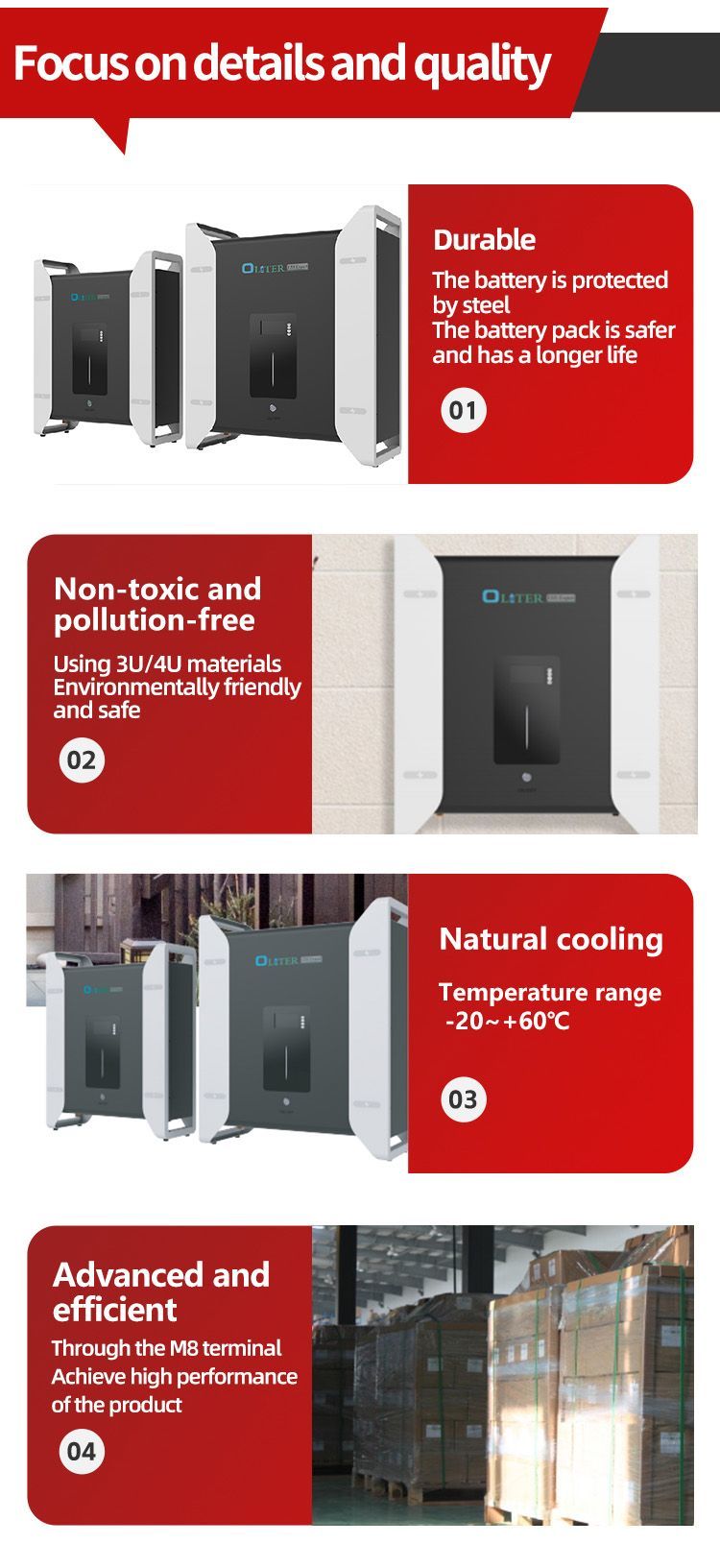

Detailed Photos
Installation Instructions
Technical parameter
| Technical Specifications | OTW48100 | OTW48200 |
| Installation form | Wall hanging / landing | Wall hanging / landing |
| Battery type | lithium battery |
| Rated voltage(V) | 51.2 | 51.2 |
| rated capacity (Wh) | 5120 | 10240 |
| Effective capacity(Wh) | 4096 | 8192 |
| designed life | 10+ years | 10+ years |
| Dimensions | 484*195*596 mm | 558*282*664 mm |
| Weight(kg) | 47 | 89 |
| The Charge / Discharge current is recommended (A) | 50 | 50 |
| Maximum discharge current (A) | 100 | 100 |
| communication | RS485/RS232/CAN |
| Monitoring parameters | System voltage, current, battery voltage, battery temperature, and module temperature |
| soc | Intelligent algorithm |
| Operating temperature | 0ºC~50ºC charge -10ºC ~50ºC |
| Storage temperature | -20~60 ºC |
Company Profile
Beijing X-Solar Energy Co., Ltd. was found in 2020, and headquartered in Beijing. It's a science and technology innovative energy enterprises with the main business of future cell R&D, flexible photovoltaic modules, building photovoltaic module production, high-end equipment manufacturing, production line delivery, and AI-CITY wisdom energy management services.
In July 2023, the company's first demonstration factory, Jiangsu X-Solar Green-building Technology Co., Ltd., was established in Jiangyin CNBM Jetion Industrial Park. Meanwhile, Jiangsu YuanTeng FengSheng Intelligent Manufacturing Technology Co., Ltd., a wholly-owned equipment company of the company, delivered the world's first "three-in-one" automatic production line for Jiangyin base. The production line can be compatible with the production of three categories: X-Solar Light shadow series (flexible PV modules), X-Solar Light rhyme series (building PVtile modules), X-Solar Light Curtain series (building PV wall modules), and customized products. X-Solar PV series products have the advantages of integrating architectural aesthetics, complying with design specifications and creating energy value, which have been widely recognized and praised by customers in domestic and overseas.
In 2024, the company has added two regional centers in Shanghai and Guangzhou of China, and set up the Hong Kong X-Solar Future Energy Research Institute, and overseas sales companies in Australia, Italy, Germany, Saudi Arabia and Argentina. The company has launched a global layout to provide sustainable energy products and services to many countries, and has contributed to the "carbon neutrality and carbon peak".
Exhibition Display
FAQ
1.Is this 52v rack mount battery safe?
Our 52V lifepo4 battery pack is equipped with an intelligent lithium battery management system.8 Level safety protection:over charge,over current,over discharge,temperature,precharge,voltage balance,short circuit,open circuit,withi BMS smart protection embedded protect you in safe.
2.What are the advantages of this lifepo4 batteries?
Lifepo4 battery have compact size and light weight.the lifepo4 battery have advanced Structural design,Elcetrical design,Fluid simulation design,Professional matching verfication test of BMS and cells,verification.
3.what's the cycle life of the 52v lifepo4 batteries?
The battery cycle life is over 6000 times.Almost no memory effect with low self-discharge rate.
4.Modular and easy installation
Modular battery is easy installation and support 8 single string and 16 parallel connection.
5.Convenient socket
Positive and negative poles are designed with convenient sockets,Just plug and use.
6.What inverter can this battery fit into?
The battery can be adapted to the mainstream inverters on the market.
